OriMado

Japanese

download

download size update environment
prototype #5 197 KB 2005/02/02 Windows XP/2003
source 44 KB 2005/02/02 VC.NET 2003

What's This?

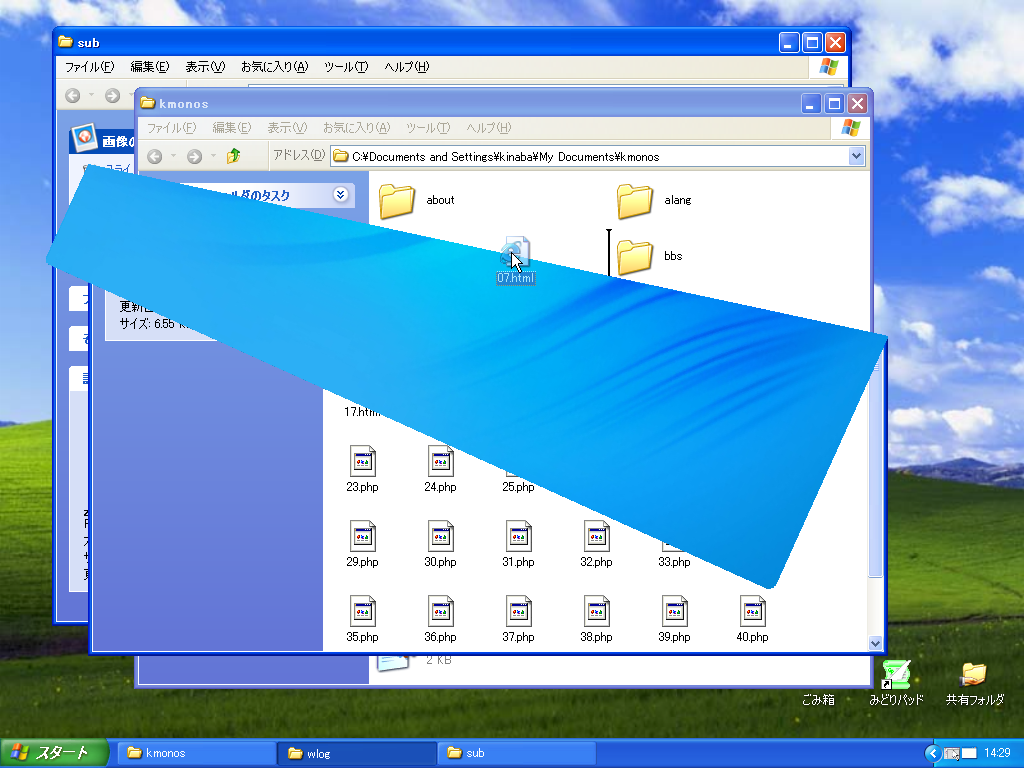

This software implements a novel interaction technique 'Fold n' Drop' proposed by Pierre Dragicevic.

Using OriMado, you can "fold" the windows by mouse gesture while you are dragging and dropping some objects like file icons. So for example, you can drag a file from Explorer window and drop it to another Explorer window hidden behind the start window in one action.

"Ori" means "Folding" or "Folded" in Japanese, and "Mado" means "Window".

How To Use

Launch OriMado.exe, then it'll stay in the taskbar.

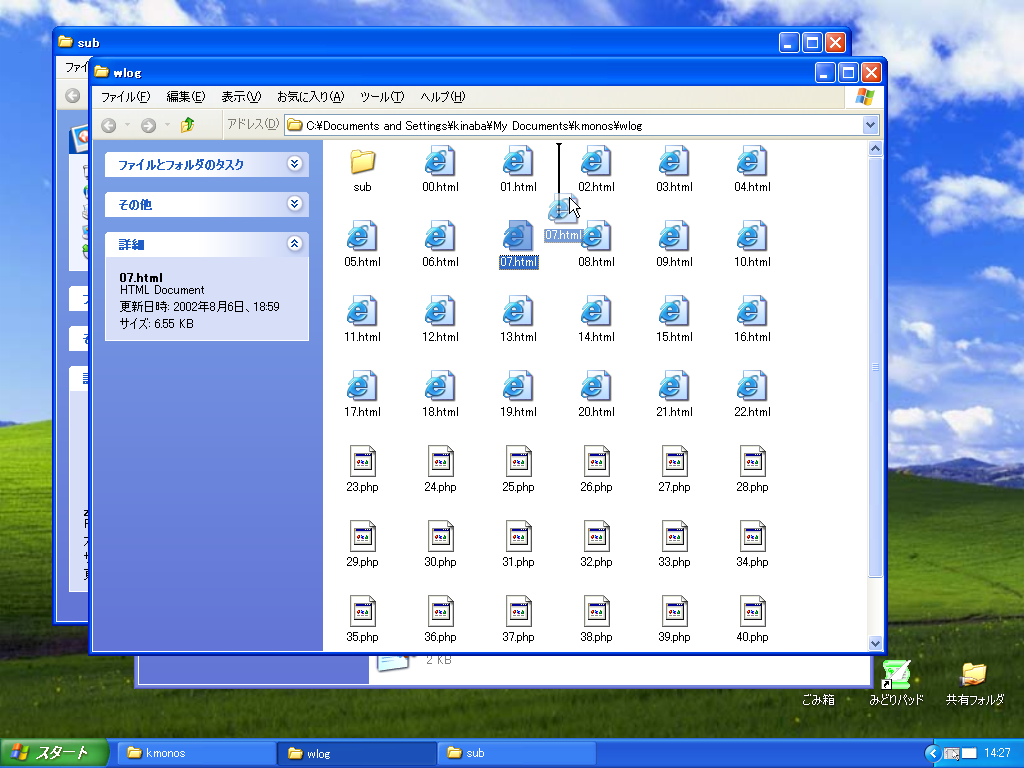

Now, you want to drag a file "07.html" from the topmost window "wlog" to the the behind window "sub". You have to take the window "wlog" away. But how?

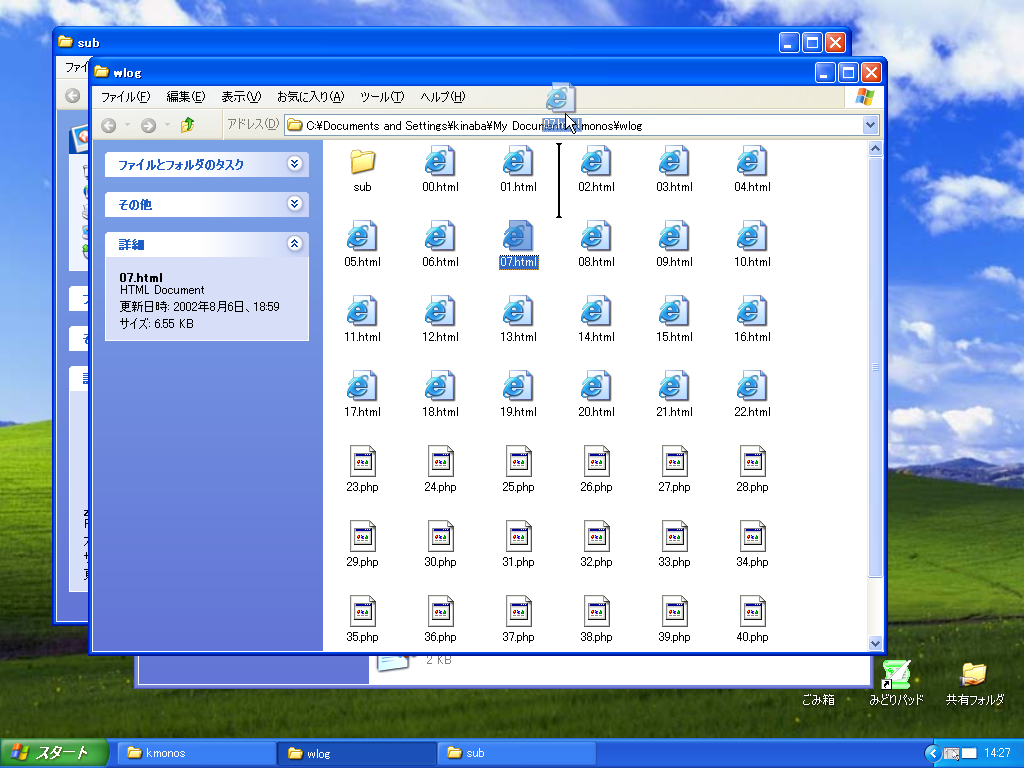

Move the mouse cursor to the edge of the cumbersome window...

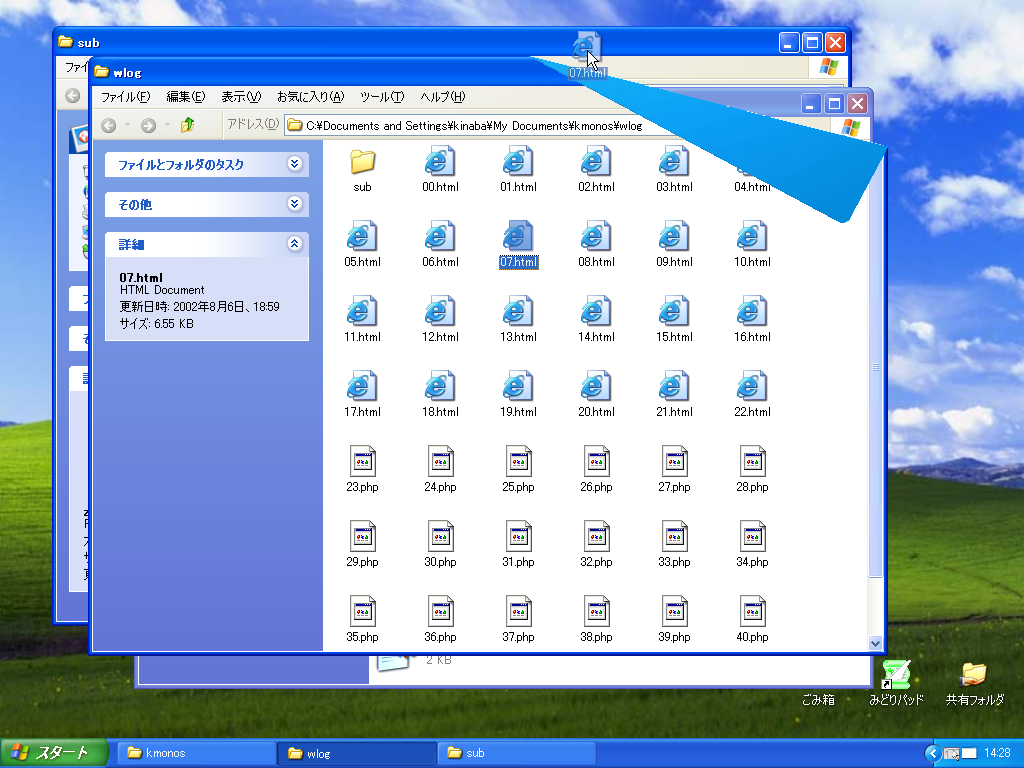

Then, OriMado automatially folds the window.

Move the mouse cursor down and push the window...

Oh ! There's another window "kmonos". Of course you'll fold it in the same way.

Now you can drop the file into the target window.

presented by k.inaba   under NYSDL.
